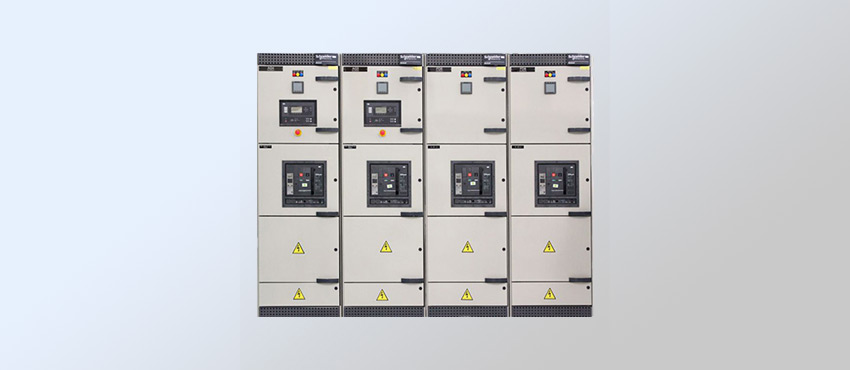

D.G Synchronization Panel

D.G Synchronization Panel

A DG Synchronization Panel is an electrical control panel used in power generation systems to synchronize and regulate the output of multiple diesel generator sets (DGs). It performs the following functions:

  • Frequency synchronization: It ensures that all the DGs in the system are operating at the same frequency. If the frequency of one DG deviates from the others, the panel adjusts its speed to bring it back in line.
  • Phase synchronization: The panel synchronizes the phase angle of the voltage waveform produced by each DG to ensure that all DGs are producing power in phase with each other.
  • Load sharing: The panel ensures that the load is distributed equally among all DGs in the system.
  • Voltage regulation: The panel regulates the voltage output of each DG to maintain a consistent voltage level in the system.
  • Automatic transfer switch (ATS): The panel automatically transfers load from one DG to another in case of a failure.

The DG synchronization panel typically consists of relays, protection devices, metering instruments, and a control unit. The control unit typically includes a programmable logic controller (PLC) or microcontroller that monitors and controls the system. The panel is designed to ensure a safe and reliable power supply, and it plays a crucial role in maintaining the stability of the power generation system.

Our DG Synchronization Panel is designed with the latest technology and made with high-quality components to ensure its exceptional performance. As a trusted manufacturer and supplier, we are proud to offer a panel that is known for its reliability and ease of use.
